Help : Fireboltt Shott (BSW222) android 9.1 Smart Watch

General
1

Hai Guys,

I am new to android smart watch world, i recently got Fireboltt (India) Shott (BSW222) 4+64GB.

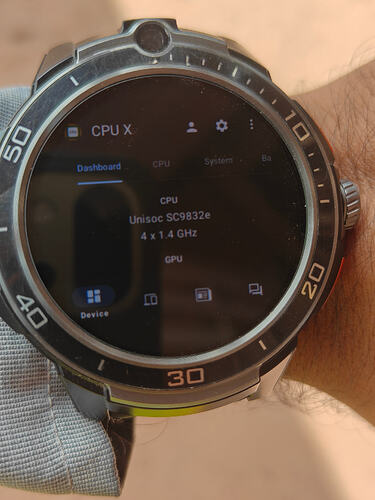

It’s operating on android 9.1, SOC : Unisoc SC9832e. Round dial , 1.54inch 466x466p Amoled display.

i think it’s a rebranded version of a chinese smart watch as i could see same watch with different brand name selling here in india. I want to know the ODM device so that i can explore the feasibility of unlocking BL, customization of watch. I found kospet prime s has similar specs. Someone from here with good knowledge, please help me to identify n tweak the device.

Thank you.

2

Need to know the exact details of the firmware version that you have installed at the moment.

Hami OS means that it should be possible to get it.

1 Like
3

technical details got through abd:

Device

• Model: Fire-Boltt FB222

• RAM: 4 GB

• Internal storage: 64 GB

• Current OS: Android 9 / HAMI OS 9.1

• Android API: 28

• Kernel: 4.4.147

• Security patch: 2020-03-05

SoC / Hardware

• Board platform: sp9832e

• SoC: UNISOC / Spreadtrum SC9832E — platform identifier “sp9832e”

• CPU ABI: arm64-v8a

• Hardware / board name: WWO_C16_OLED_PIX64

• Baseband previously visible: SC9832E_modem

Treble / Partition information

• “ro.treble.enabled = true” :white_check_mark:

• “ro.boot.verifiedbootstate = green”

• “ro.bootloader = unknown”

• “ro.boot.slot_suffix” = empty → appears to be A-only/non-A-B

• Storage uses eMMC-style “/dev/block/mmcblk0”

• Important partitions found:

- boot

- dtb

- dtbo

- system

- vendor

- product

- vbmeta

- recovery

- userdata

- uboot / uboot_bak

- trustos / trustos_bak

- modem-related partitions: l_modem, wcnmodem

- GPS partitions: gpsbd, gpsgl

- NV partitions: prodnv, l_fixnv1, l_fixnv2, l_runtimenv1, l_runtimenv2, l_deltanv

ADB

• USB debugging works

• Original 4-pin magnetic charging cable is also working for data/ADB

• “adb devices” successfully detects:

“20241008222016626 device”

Important: I have NOT flashed/unlocked/modified anything yet. Only read-only ADB commands were used.

What we want to find

Can anyone identify this exact hardware/firmware or a compatible custom ROM/GSI?

The main question is whether this can run a Treble GSI newer than Android 9, preferably Android 11/12/13, while retaining watch-specific hardware functionality.

4

MODEL : FB222(WW0_C16_OLED_PIX64)

manufacturer : sprd

Build No: G232_64_EN_V1.3_20240518

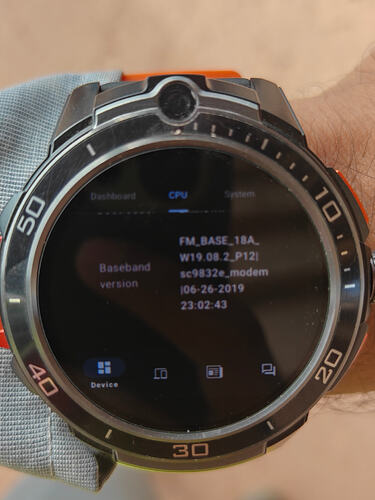

Baseband version: FM_BASE_18A_W19.08.2_P12|sc9832e_modem|06-26-2019 23:02:43

can provide additional information if required sir.

1 Like
5

No replies :smirking_face:

@AILIFE sir plz have a look this is the model

189408
1894081920×2560 588 KB

189409
1894091920×2560 480 KB

6

can max out at 10 or 11 only, most 8541e are like this, you can install CloX or TraX if you wish to retain most of the watch functions

1 Like
7

But It’s 9832e…u mean no major difference bwn them?

Sry, i didn’t get CloX n TraX can give any link to learn more about it?

Thanks.
