DIY Charging Station

[suend]

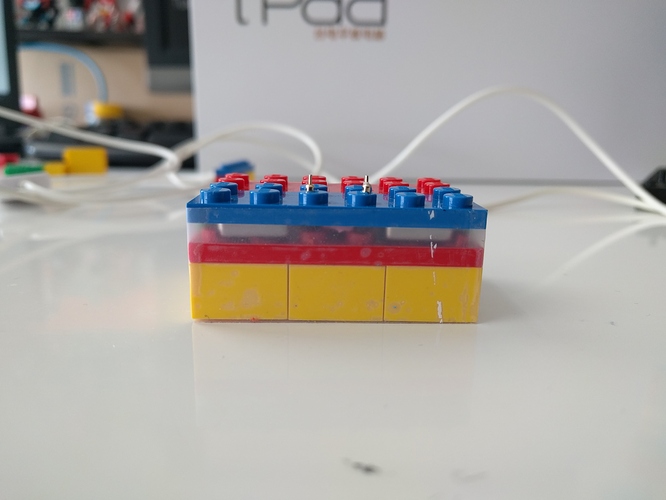

Hi, I just used my old USB cable, 2 pogo pins and LEGO blocks to make a charging station for my android watch

It is not difficult as long as you test which pin is red and black. Just measure and drill 2 holes on a LEGO block.

I also added 2 magnets to the charging core so it can attach with the watch better.

Hope you find it interesting.

Attachments:

[sonia_sophie_ataunna]

Apr 17, 2018 18:18:31 GMT 1 suend said:

that is just creative:) why only 2 pins?

[suend]

Apr 18, 2018 16:19:10 GMT 1 soniasophie9697 said:

Apr 17, 2018 18:18:31 GMT 1 suend said:

that is just creative:) why only 2 pins?

I only have 2 pogo pins for now… Will add to middle two later

[sonia_sophie_ataunna]

Apr 19, 2018 2:10:55 GMT 1 suend said:

Apr 18, 2018 16:19:10 GMT 1 soniasophie9697 said:
that is just creative:) why only 2 pins?

I only have 2 pogo pins for now… Will add to middle two later

and it charges the watch???

[suend]

Apr 19, 2018 9:58:59 GMT 1 soniasophie9697 said:

Apr 19, 2018 2:10:55 GMT 1 suend said:
I only have 2 pogo pins for now… Will add to middle two later

and it charges the watch???

Yes, it charges the watch and you can see in my 2nd picture. The outer 2 pins are for charging and inner 2 pins is for data. So for now this is a charging station only. Also I have to cut the corners of the triangle lego blocks so that I can drop the watch and it slots in to charging without adjusting it.

I have been using it for a few days and it works perfectly!
